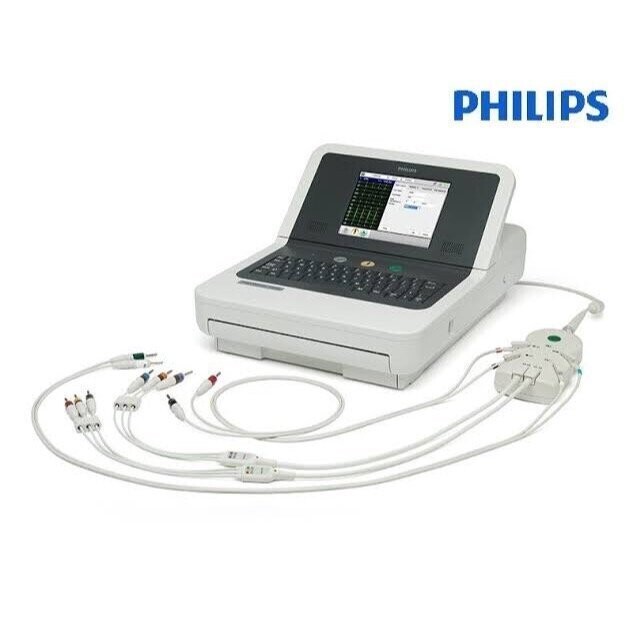

ECG Machine - Make Philips
PageWriter TC20 Cardiograph (860332)
ECG functions |
|
Simultaneous lead acquisition |
12 leads |
ECG reports |
• 3x4, 3x4 1R, 3x4 3R, 3x4 1R plus ST Maps, 6x2, 12x1 • Standard and Cabrera formats, plus Pan 12 Cabrera |
Standard measurements |
• Ten interval, duration, and axis measurements • Configurable QT correction method |
Rhythm strips |
Up to 12 configurable leads |
Disclosure (D05) |
• Five-minute history of all 12 leads 10 seconds |
Event marking (D05) |
• Six independent events can be marked for later review and analysis • Event markers appear on ECG reports |
Timed ECG |
Support for pharma stress protocols |
Report storage and transfer |
Full fidelity at 500Hz of 10 seconds for all 12 leads |
Data format |
PDF, XML, DICOM 12-lead ECG, and DICOM General ECG formats |
DXL ECG Algorithm (D03) |
|
Interpretive statements |
• >600 interpretive statements • Integrated pediatric analysis |
Borderline statement suppression |
Three configurable settings |
Extended measurements |
• 46 measurements of morphology analysis in each of the 12 leads • 21 parameters of rhythm analysis |
Reasons |
Selectable explanations of all interpretive statements |
Nomenclature |
Aligned with 2007 AHA/ACCF/HRS Recommendations, Part II1 |
STEMI diagnostic aids |
|
Graphical ST presentation |
• Two ECG reports with polar ST Maps • Frontal and transverse planes |
Age and gender criteria (D03) |
Based upon 2009 AHA/ACCF/HRS Recommendations, Part VI: Acute Ischemia/Infarction 2 |
STEMI-CA |
• Criteria that suggest any of four probable sites of the occluded coronary artery • Based upon 2009 AHA/ACCF/HRS Recommendations, Part VI2 |
Critical values (D03) |
Highlights four conditions requiring immediate clinical attention |
Advanced bi-directional network communications3 |
|
Central time management (D01) |
Time can be manually or automatically synchronized to a Network Time Server via IntelliSpace ECG or IntelliBridge Enterprise |
Orders worklist (D01) |
|
ADT (D02) |
|
Last ECG (D06) |
• Automatic retrieval of previous ECG or list of available ECGs for current patient • Supported by IntelliSpace ECG |
Interactive query (D06) |
• Retrieval of selected ECGs based upon user-entered search criteria • Supported by IntelliSpace ECG |
Manual orders (D07) |
Create patient worklists with complete demographic information for later retrieval |
DICOM ECG Output (D08) |
• Create DICOM 12-lead ECG |
Signal quality indicators |
|
Leads-off advisory |
Anatomical lead map displays the location and label of loose or disconnected leads/electrodes |
Lead color |
Four colors to indicate quality of individual leads |
LeadCheck |
Lead-placement software detects 20 different lead reversals |
Heart rate |
Continuous display of patient heart rate |
Print preview |
Full-screen preview of ECG waveforms prior to printing |
User training and self help |
|
Application help |
Integrated graphical help for primary functions |
Self-paced training |
PC-based, interactive, dynamic animation covering all major clinical functions |
Training mode |
Integrated waveform simulation |
Technical specifications
User interface |
|
Touchscreen |
• 1-2-3 operation |
Keyboard |
• Backlit 1-2-3 buttons keyboard |
Membrane keyboard cover |
Silicone-based flexible cover protects keyboard from particulate and liquid ingress |
Display |
|
Size |
6.5in TFT active matrix |
Resolution |
640 x 480 VGA |
Colors |
64K colors |
Patient connections |
|
Patient cable |
Acquire data at 8,000 samples/second on each patient connection |
Long patient cable (H23) |
Extended-length lead wires enable greater distances between the patient cable and the patient connections |
End connectors (adaptors) |
|
Alligator clips (E01) |
Alligator clips for tab electrodes |
Wide tab (E02) |
Flat adaptor for tab electrodes reduces twisting (AAMI only) |
Welsh bulbs (E04) |
Six Welsh bulbs and four limb clamps |
Snap/Tab adaptor (E06) |
Fits both snap and tab electrodes with metal on both sides |
Printer |
|
Resolution |
High-resolution, digital-array printer using thermal-sensitive paper; 200dpi (voltage axis) by 500dpi (time axis) at 25mm/sec |
Connectivity |
|
LAN (D20) |
10/100 Base-TX IEEE 802.3 ethernet via on-board RJ45 |
Wireless LAN (D23) |
802.11(b/g) |
Internal storage (D06) |
200 ECGs |
External storage (D06) |
200 ECGs with optional USB device |
Automated data input |
|
Bar code reader (H12) |
• Reads Code 39 Symbology • Flexible field data entry |
Smart “IC” card reader (H14) |
• ISO 7816 and EMV 3.1.1 |
Pre-processing filters |
|
AC noise |
50 or 60Hz |
Signal processing |
Artifact Rejection and Baseline Wander |
Presentation filters – 10 sec reports |
|
High pass |
0.05, 0.15, and 0.5Hz |
Low pass |
40, 100, and 150Hz |
Presentation filters – rhythm |
|
High pass |
0.05 and 0.15Hz |
Low pass |
40, 100, and 150Hz |
Electrical |
|
Battery |
Lithium ion |
Battery capacity |
• Typically 30 ECGs or 30 minutes of continuous rhythm recording on a full charge • No fail operation during ECG printing |
Battery recharge |
Four hours to full capacity |
Main power |
100-240 VAC, 50/60 Hz |
Power consumption |
60 W max |
Mechanical |
|
Dimensions |
31 x 40 x 21cm (12 x 16 x 8in) |
Weight |
8.6kg (19lb) includes battery, patient cable |
Environmental |
|
Operating conditions |
• 10° to 40°C (50°F to 104°F) • 10% to 90% relative humidity (non-condensing) |
Storage conditions |
• -20°C to 50°C (-4°F to 122°F) • 10% to 90% relative humidity (non-condensing) |
Safety and performance |
|
International standards and regulations |
|
