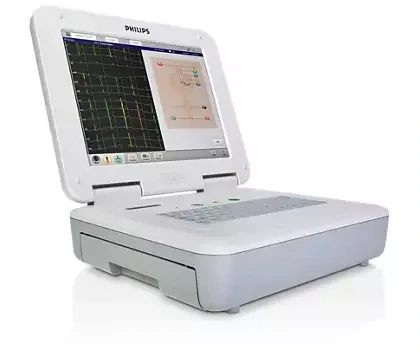

Name: PageWriter TC30 Cardiograph (860306)
Brand: ECG Machine - Make Philips
SKU: 00865
Price: 190000.0 INR
Availability: InStock

+91 8878900786

PageWriter TC30 Cardiograph (860306)

Store/ICU EQUIPMENT

Product Details

Brand: ECG Machine - Make Philips

FEATURES
ECG functions
Simultaneous lead acquisition	• 12 leads
ECG reports	• 3x4, 3x4 1R, 3x4 3R, 3x4 1R plus ST maps, 6x2, 12x1 • Standard and Cabrera formats, plus Pan 12 Cabrera
Standard measurements	• Ten interval, duration, and axis measurements • Configurable QT correction method
Rhythm strips	• Up to 12 configurable leads
Disclosure (D05)	• Five-minute history of all 12 leads • Complete ECG report of any selected 10 seconds
Event marking (D05)	• Six independent events can be marked for later review and analysis • Event markers appear on ECG reports
Timed ECG	• Support for pharma stress protocols
Report storage and transfer	• Full fidelity at 500Hz of 10 seconds for all 12 leads
Data format	• PDF, XML DICOM 12-lead ECG, and DICOM General EG formats
DXL ECG Algorithm (D03)
Interpretive statements	• >600 interpretive statements • Integrated pediatric analysis
Borderline statement suppression	• Three configurable settings
Extended measurements	• 46 measurements of morphology analysis in each of the 12 leads • 21 parameters of rhythm analysis
Reasons	• Selectable explanations of all interpretive statements
Nomenclature	• Aligned with 2007 AHA/ACCF/HRS Recommendations, Part II¹
STEMI diagnostic aids
Graphical ST presentation	• Two ECG reports with polar ST Maps • Frontal and transverse planes
Age and gender criteria (D03)	• Based upon 2009 AHA/ACCF/HRS Recommendations, Part VI: Acute Ischemia/Infarction²
STEMI-CA (Culprit Artery) (D03)	• Criteria that suggest any of four probable sites of the occluded coronary artery • Based upon 2009 AHA/ACCF/HRS Recommendations, Part VI²
Critical values (D03)	• Highlights four conditions requiring immediate clinical attention
Advanced bi-directional network communications³
Central time management (D01)	• Time can be manually or automatically synchronized to a Network Time Server via IntelliSpace ECG or IntelliBridge Enterprise
Orders worklist (D01)	• Download of orders worklist from networked server • User-configurable drop down lists by location, user, or shift) Ad-hoc query for specific orders based upon multiple user-entered or scanned search criteria (e.g., patient ID, last/first name) • Supported by Open Worklist with IntelliSpace ECG and select departmental systems • Supported by standard HL7 and DICOM interfaces via IntelliBridge Enterprise for departmental and hospital systems • Supported by DICOM modality worklist with DICOM MWL system
ADT (D02)	• Query and retrieval of patient demographic information • Based upon user-entered or scanned search criteria (e.g., patient ID, last/ first name) • Supported by standard HL7 interface via IntelliBridge Enterprise for hospital system
Last ECG (D06)	• Automatic retrieval of previous ECG or list of available ECGs for current patient • Supported by IntelliSpace ECG
Interactive query (D06)	• Retrieval of selected ECGs based upon user-entered search criteria • Supported by IntelliSpace ECG
Manual orders (D07)	• Create patient worklists with complete demographic information for later retrieval
DICOM ECG result output (D08)	• Create DICOM 12-lead ECG • Create DICOM General ECG
Signal quality indicators
Leads-off advisory	• Anatomical lead map displays the location and label of loose or disconnected leads/ electrodes
Lead color	• Four colors to indicate quality of individual leads
LeadCheck	• Lead-placement software detects 20 different lead reversals
Heart rate	• Continuous display of patient heart rate
Print preview	• Full-screen preview of ECG waveforms prior to printing
User training and self help
Application help	• Integrated graphical help for primary functions
Self-paced training	• PC-based interactive, dynamic animation covering all major clinical functions
Training mode	• Integrated waveform simulation

TECHNICAL INFORMATION
User interface
Touchscreen	• 1-2-3 operation • Context-sensitive application • Five-wire, resistive touchscreen
Keyboard	• Backlit 1-2-3 buttons • 65-button, standard full alphanumeric keyboard • Special characters supported
Membrane keyboard	• Silicone-based flexible cover protects keyboard from particulate and liquid ingress
Display
Size	• 6.5in TFT active matrix
Resolution	• 640 x 480 VGA
Colors	• 64K colors
Patient connections
Patient Interface Module (PIM)	• Remote, microprocessor-controlled digital module provides 5μV resolution • Acquire data at 8,000 samples per second, per lead wire
Long lead set (H23)	• Extended-length lead wires enable greater distances between the PIM and the patient connections
End connectors (adaptors)
Alligator clips (E01)	• Alligator clips for tab electrodes
Wide tab (E02)	• Flat adaptor for tab electrodes reduces twisting (AAMI only)
Welsh bulbs (E04)	• Six Welsh bulbs and four limb clamps
Snap/Tab adaptor (E06)	• Fits both snap and tab electrodes with metal on both sides
Printer
Resolution	• High-resolution, digital-array printer using thermal-sensitive paper; 200dpi (voltage axis) by 500dpi (time axis) at 25mm/sec
Connectivity
LAN (H10)	• 10/100 Base-TX IEEE 802.3 ethernet via on-board RJ45
Modem (H11)	• V.90, K56flex, enhanced V.34, V.32bis, V.32, V.22bis, and below
Fax (H11)	• Group 3, Class 1 or 2 fax modem protocol
Wireless (D21)	• 802.11(b/g), 802.11(i), WPA, WPA2
Wireless (D22)	• 802.11(a/b/g), 802.11(i), WPA, WPA2
Wireless credential (D21, D22)	• Cisco compatible CCX v4
FIPS certificate	• FIPS 140-2 validated
Internal storage (D06)	• 200 ECGs
External storage (D06)	• 200 ECGs with optional USB device
