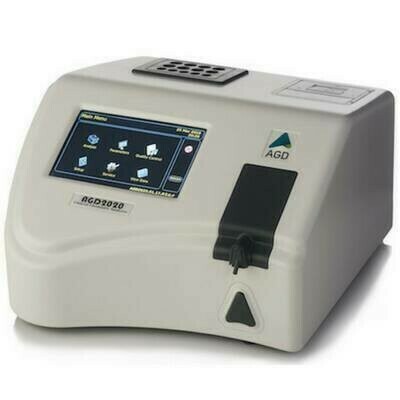

Biochemistry Analyzer AGD-2020

Store/Pathology

Product Details

Brand: AGD

Salient Features:

• 7" graphic resistive touchscreen colour display

• Online reaction Curve

• Tri-Level Quality Control with L-J plot

• Storage of 5000 test results with reaction curve

TECHNICAL SPECIFICATIONS

Assay types	Absorbance, Endpoint, Kinetic, Fixed Time, Coagulation
Wavelengths	Interference Filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm, 670nm + 10nm
Photometer range	-0.1-3.000Abs
Aspiration Volume	0.2mL to 1.0mL
Cuvette Volume	500μL
Flow Cell	18μL
Storage Capacity	196 Programs, 5000 Test records with reaction curve
Light Source	6V/10W, Tungsten Halogen Lamp
Temperature Control	25,30,37˚C by Peltier Effect
Display	7" Graphic colour LCD with resistive touch screen, Resolution - 800 X 480 Pixels
Printer	Built-in 2"Thermal Printer (can be switched ON/OFF, when desired)
Interface	External Keyboard/ Mouse
Power supply	100 - 240V AC ±10%, 50/60 Hz
Storage Conditions	Temperature: 15˚C to 40˚C, Relative Humidity: up to 85%
External Dimensions	360mm(L) x 355mm(B) x 170mm(H)
Weight	6.5Kg(approx)

AGD Biomedicals' experience and understanding of laboratory needs has led to an innovative product

developed with one key objective—provide excellent Chemistry Analyzer, resulting in the ultimate

customer satisfaction.

AGD2020 is a Compact, convenient, new generation analyzer most suitable for medium sized and

small laboratories, also as a backup for big laboratory or hospital setups.

MAIN MENU

• AGD2020 is analyzer with a variety of features and performancelevels to fit any application

• Full size graphical display gives you true convenience in

operation and minimizes errors while entering data

• User friendly software with interactive Graphical user interface

• Shortcut keys for Menus to ease the operation

TEST SELECTION

Direct Access to 196 tests: AGD2020 gives you the freedom to choose the assay directly— so you can produce result simply, swiftly and successfully.

ANALYSIS

Real time reaction curve with special checks and flaggings to give trouble free performance and confidence in reporting.

CALIBRATION

Availability of various Calibration types like K-factor, Linear and Non Linear calibration curves like Spline, Logit-log, Exponential, Parabola and Polynomial enables the AGD2020 to run variety of biochemical and immunoturbidity assays.

Run Quality Control

• Levy Jennings plot of daily and monthly QC data to give the visual indication of the performance of assays and gives additional advantage for the accreditation of the Laboratory.

• Collated Patient reports(date-wise, test-wise and patient-wise) : 5000 stored results with reaction curve.

ASPIRATION SYSTEM

• Aspiration system: Internal peristaltic pump driven by DC motor for accurate and precise aspiration of reaction mixture.

• Air purging after every sample aspiration, to minimize carryover

• Maintenance: Automatic cleaning of f low cell at the end of assay and at shutdown with special wash solution improves the performance of the analyzer.
